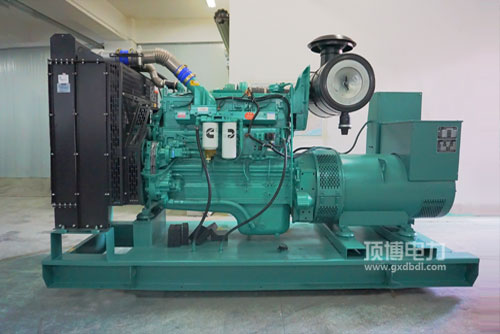

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发驱动力汽柴油区域整体可靠性好: 比较好的的汽柴油调控整体，具有的STC、ESTC 分级管理调控整体，特有定制的活塞杆上端烧物室，进行高压喷出汽柴油，全面地做雾化，烧物全面地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用启动因瞬态功能优等: 圆满的启动因建筑体开发，搞好团结康明斯独家的EFC设备，调整准确程度高，回复时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用起驱动力升输出功率高: 整体布局设计方案紧凑型.外表装置适当合理，运动有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50达到中国大非通道3、分阶段及中美洲Tier2. Tier 3产生法规标准需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理必须性好， 打火机加载及运维清洗保养便民，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率面积 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯火力发电用启倾向的特征 ：空间小， 减小比低， 格栅板气体调温，更能启用，手机汽车导航24v电源的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型號	最常用输出功率(kW)Prime Power	自备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
